library(tidyverse)
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.5
✔ forcats   1.0.0     ✔ stringr   1.5.1
✔ ggplot2   3.5.2     ✔ tibble    3.3.0
✔ lubridate 1.9.4     ✔ tidyr     1.3.1
✔ purrr     1.0.4
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
library(reshape2)

Attaching package: 'reshape2'

The following object is masked from 'package:tidyr':

    smiths
library(data.table)

Attaching package: 'data.table'

The following objects are masked from 'package:reshape2':

    dcast, melt

The following objects are masked from 'package:lubridate':

    hour, isoweek, mday, minute, month, quarter, second, wday, week,
    yday, year

The following objects are masked from 'package:dplyr':

    between, first, last

The following object is masked from 'package:purrr':

    transpose
library(metafor)
Loading required package: Matrix

Attaching package: 'Matrix'

The following objects are masked from 'package:tidyr':

    expand, pack, unpack

Loading required package: metadat
Loading required package: numDeriv

Loading the 'metafor' package (version 4.8-0). For an
introduction to the package please type: help(metafor)
library(metagear)
Warning: no DISPLAY variable so Tk is not available
** metagear 0.7, for installing/troubleshooting help see:
**     http://lajeunesse.myweb.usf.edu/metagear/metagear_basic_vignette.html
***** External dependencies check:
***** setup supports GUIs [ FALSE ]
*****    NOTE: Your configuration may still support GUIs,
*****          use the fixes below only after you try
*****          running metagear's abstract_screener().
**
**   Fix for Windows users:
**      Update R (tcltk is now part of all new R builds).
**   Fix for Mac users:
**      Install xQuartz (X11) from https://www.xquartz.org/
***** setup supports data extraction from plots/figures [ FALSE ]
*****       NOTE: EBImage package (Bioconductor) will be installed only
*****             when a figure_* function is used.
library(GGally)
Registered S3 method overwritten by 'GGally':
  method from
  +.gg   ggplot2
# read data
d1 <- readxl::read_xlsx('Source Data.xlsx',sheet = "FigureS3")
d1 <- as.data.table(d1)

d2<-d1
CV_nuet_bar<-mean(d2$nuet_sd[is.na(d2$nuet_sd)==FALSE]/d2$nuet_mean[is.na(d2$nuet_sd)==FALSE])
d2$nuet_sd[is.na(d2$nuet_sd)==TRUE]<-d2$nuet_mean[is.na(d2$nuet_sd)==TRUE]*1.25*CV_nuet_bar

CV_nuec_bar<-mean(d2$nuec_sd[is.na(d2$nuec_sd)==FALSE]/d2$nuec_mean[is.na(d2$nuec_sd)==FALSE])
d2$nuec_sd[is.na(d2$nuec_sd)==TRUE]<-d2$nuec_mean[is.na(d2$nuec_sd)==TRUE]*1.25*CV_nuec_bar

# clean up column names
d2 <- as.data.table(d2)
setnames(d2,gsub('\\/','_',gsub(' |\\(|\\)','',colnames(d2))))
setnames(d2,tolower(colnames(d2)))

#Supplement and update the missing values for n_dose and p_dose
d2[is.na(n_dose), n_dose := median(d2$n_dose,na.rm=TRUE)]

# update the database (g_crop_type)
d2[g_crop_type=='maize', g_crop_type := 1]
d2[g_crop_type=='wheat', g_crop_type := 2]
d2[g_crop_type=='rice', g_crop_type := 3]

#Conversion of factored data to numeric data
d2$g_crop_type <- as.numeric(d2$g_crop_type)
str(d2)
Classes 'data.table' and 'data.frame':  2436 obs. of  15 variables:
 $ studyid    : num  1 2 2 2 2 3 3 4 4 4 ...
 $ mat        : num  14.2 14.2 14.2 14.2 14.2 ...
 $ map        : num  495 495 495 495 495 ...
 $ clay       : num  26.7 26.7 26.7 26.7 26.7 ...
 $ soc        : num  11.5 11.5 11.5 11.5 11.5 ...
 $ ph         : num  7.79 7.79 7.79 7.79 7.79 ...
 $ g_crop_type: num  2 1 1 1 1 1 1 1 1 1 ...
 $ management : chr  "EE" "CF" "CF" "RES" ...
 $ n_dose     : num  120 150 150 150 150 337 349 150 150 150 ...
 $ replication: num  2 3 3 3 3 4 4 3 3 3 ...
 $ nue_type   : chr  "REN" "REN" "REN" "REN" ...
 $ nuet_mean  : num  78.3 35.7 25.3 35.7 43.9 ...
 $ nuet_sd    : num  10.17 4.64 3.29 4.64 5.7 ...
 $ nuec_mean  : num  72.5 30.6 30.6 30.6 30.6 ...
 $ nuec_sd    : num  9.89 4.17 4.17 4.17 4.17 ...
 - attr(*, ".internal.selfref")=<externalptr>
 - attr(*, "index")= int(0)
# update the database (tillage)
d2[management=='ROT', management := 7]
d2[management=='CC', management := 8]
d2[management=='RES', management := 9]
d2[management=='RFR', management := 10]
d2[management=='RFP', management := 11]
d2[management=='RFT', management := 12]
d2[management=='CF', management := 13]
d2[management=='OF', management := 14]
d2[management=='RT', management := 15]
d2[management=='NT', management := 16]
d2[management=='EE', management := 17]

#Conversion of factored data to numeric data
d2$management <- as.numeric(d2$management)

# Estimate meta-analytical response measure (ROM Method)

# calculate effect size (NUE)
es21 <- escalc(measure = "ROM", data = d2,
               m1i = nuet_mean, sd1i = nuet_sd, n1i = replication,
               m2i = nuec_mean, sd2i = nuec_sd, n2i = replication )

# make forest plots per group treatments

# convert to data.tables
d02 <- as.data.table(es21)

d3 <- d02[,c("mat","map", "clay", "soc", "ph", "n_dose", "g_crop_type")] #Extraction correlation column

#Standardize data to prevent large gaps in values

df=scale(d3[,1:7],center=TRUE,scale=TRUE)

#Change column name
names(d3)<-c("MAT","MAP", "Clay", "SOC", "pH", "N rate", "Crop type")
head(d3)
        MAT       MAP     Clay      SOC       pH N rate Crop type
      <num>     <num>    <num>    <num>    <num>  <num>     <num>
1: 14.23171  494.9222 26.72143 11.50714 7.792857    120         2
2: 14.23171  494.9222 26.72143 11.50714 7.792857    150         1
3: 14.23171  494.9222 26.72143 11.50714 7.792857    150         1
4: 14.23171  494.9222 26.72143 11.50714 7.792857    150         1
5: 14.23171  494.9222 26.72143 11.50714 7.792857    150         1
6: 17.87691 1281.7686 34.41429  9.05000 5.700000    337         1
str(d3)
Classes 'data.table' and 'data.frame':  2436 obs. of  7 variables:
 $ MAT      : num  14.2 14.2 14.2 14.2 14.2 ...
 $ MAP      : num  495 495 495 495 495 ...
 $ Clay     : num  26.7 26.7 26.7 26.7 26.7 ...
 $ SOC      : num  11.5 11.5 11.5 11.5 11.5 ...
 $ pH       : num  7.79 7.79 7.79 7.79 7.79 ...
 $ N rate   : num  120 150 150 150 150 337 349 150 150 150 ...
 $ Crop type: num  2 1 1 1 1 1 1 1 1 1 ...
 - attr(*, "digits")= Named num [1:9] 4 4 4 4 4 4 4 4 4
  ..- attr(*, "names")= chr [1:9] "est" "se" "test" "pval" ...
 - attr(*, "yi.names")= chr "yi"
 - attr(*, "vi.names")= chr "vi"
 - attr(*, ".internal.selfref")=<externalptr>

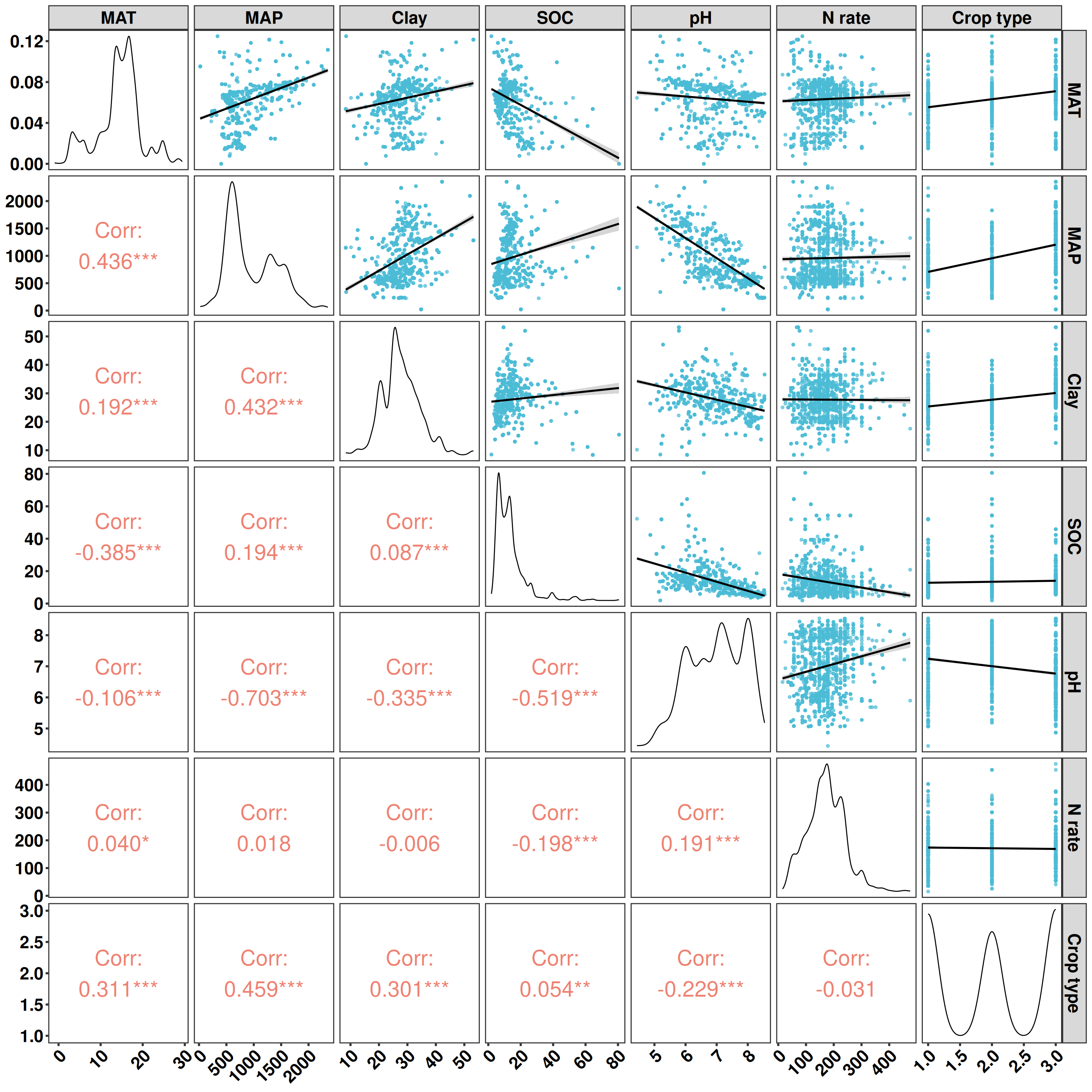

#Calculate correlation coefficients and scatter plots and fit linearity
ggpairs(d3, lower = list(continuous = wrap("cor", size = 8,color="#E64B35B2")),
        upper = list(continuous = wrap("smooth", size =1.2,color="#4DBBD5B2")))+
  theme_bw(base_line_size = 1.05,base_rect_size = 1.05)+
  theme(panel.grid.major=element_blank(),panel.grid.minor=element_blank())+
  theme(axis.text=element_text(colour='black',size=18, face="bold"), strip.text = element_text(color="black", size = 18, face="bold"))+
  theme(axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1))

ggsave(file = "picture/Figure_S3.png",width = 410,height = 297, units = "mm")
